AC-DC Constant Current LED driver |
|
|
|
Why Use LED Lighting?
- LED lighting provide an excellent source of illumination, long life, safe and energy efficient.
- The LED Low-voltages contribute to extended LED life and increased safety.
- Small fixture sizes and low heat.
- Common applications include residences, display lighting, task lighting, and product highlighting.
Why Use Constant Current driver?
LEDs are current-driven devices whose brightness is proportional to their forward current. Forward current can be controlled in two ways. The first method is to use the LED V-I curve to determine what voltage needs to be applied to the LED to generate the desired forward current. This method has several drawbacks, any small change in LED forward voltage creates a larger change in LED current, it will increase power dissipation and reduce the LED life.
The second preferred method of regulating LED current is to drive the LED with a constant-current source, this method will eliminate changes in current due to variations in forward voltage, which translates into a constant LED brightness.
CHARGERY develop and produce high efficiency Constant Current driver for LED.
Now 10W, 20W and 100W is released. |

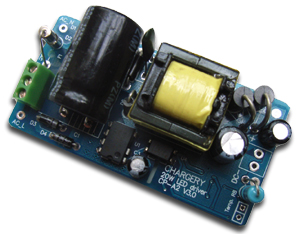

Model: CP-A2
Applied for the 10W white, blue and red LED.
- Low temperature start with -40℃
- Overload and short circuit protection
- Temperature protection over 58℃ and recovery automatically under 52℃
- Input: 90-265VAC
- Output: DC11V max. 2000mA+/-3%
- Size :70*35*20 (L*W*H, mm)
- Weight:40g
More information please check the data sheet.
20W LED driver data sheet (86.2K ) |
|
|
Model: CP-A1
Applied for the 10W white, blue and red LED.
- Low temperature start with -40℃
- Overload and short circuit protection
- Input: 90-265VAC
- Output: DC13V max. 970mA+/-3%
- Size :70*35*20 (L*W*H, mm)
- Weight:35g
More information please check the data sheet.
10W LED driver data sheet (115K ) |
|
|
|
Model: CP-L100
Applied for the 100W white, blue and red LED.
- Low profile with 30 mm max. height
- Universal AC input
- Regulated output
- EMI filter built in
- Overload and short circuit protection
- Size :130*52*30 (L*W*H, mm)
- Weight: 205g
More information please check the data sheet.
100W LED driver data sheet (88.1K ) |
|
|
|
|
|
|
|
|
|
|
