LiPo/Li-ion battery balance Charger

Model:320B V1.1

320B is updated to NEW version, the charge current of 1A and 2A is availabel, and LiPo, LiFe battery can be supported.





320B is micro-processor controlled charger with built-in cell balancer, it can charge the 2S or 3S LiPo or LiFe pack at 1A or 2A.



  charge current: 1A

Perfect balancing the Li-Poly Batteries
The built-in balancer automatically detect and balance each cell voltage of the 2 to 3 cells in series. It monitors the voltages of each cell during the charge process to equalize the peak voltage.



320B user's manual V1.0(106K )

320B user's manual V1.1(106K )

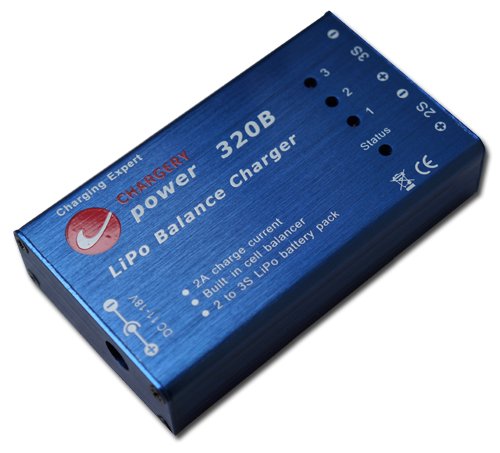

charge current: 2A

Individual cell connectors for various type of Li-Poly or LiFe battery pack
320B comes with a set of individual cell connectors to link with various type of Li-Poly and LiFe battery pack.

Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat.

Convenient DC Input
Connect to your auto battery or a 12 V power supply, The 320B charge your battery pack at 1A or 2A current.

Perfect protection
The 320B has all kinds of protection for reversed polarity( input or output), low input voltage.

Main Specifications:

  1. Input Voltage/Current:   DC 10-18V,
  2. Output Power: 15W at 1A or 30W at 2A MAX.
  3. Battery type :  2S and 3S LiPo or LiFe battery
  4. Charge Current:  1A or 2A
  5. LED indicator: 3 LEDs indicate cell balancing
  6. DUAL color LED: indicate charging status.

General Specifications:

  1. Operating Temperature: 0~40íŠ
  2. Storage Temperature:  -20~85íŠ
  3. Operating Relative Humidity:  5~95%RH

Mechanical Characteristics:

  1. Dimension: 75*44*18(mm, L*W*H)
  2. Case Material : Al alloy
  3. Input lead: coaxial jack, silicon lead  300mm long ending in insulated alligator clips
  4. Output jack: 3PIN and 4PIN balance connector for 2S and 3S battery
  5. weight: 70g (without cables)

Safety Certification:CE

320B is fully committed to compliance with the European Unioní»s RoHS directive.

Input power lead ( standrd)



All kinds of balance connectors are customized for TP, Flightpower, Hyperion, Kokam, Graupner lipo batteries and  so on.
